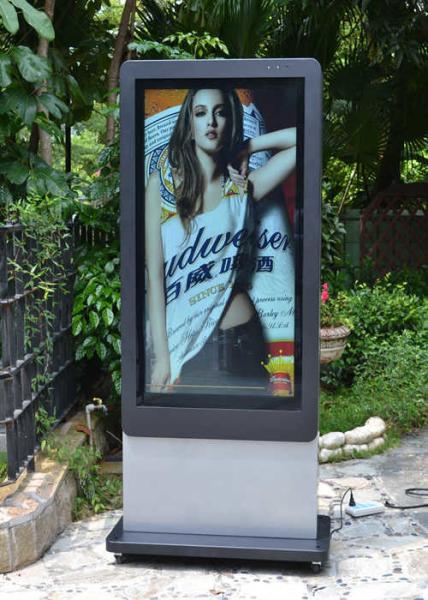

High Brightness 55 inch 2K Double Sided Digital Signage LCD Totem
Safety protection:
Corrosion protection: High strength galvanized steel
Explosion-proof: AR tempered glass protection, explosion-proof, anti-reflection;
Waterproof: compound sealing strip, multi-angle no water.
Long-term stable endurance:
Built-in leakage protection switch, wide voltage power supply module;
Ultra high Definition LCD screen: hd LCD screen can clearly display images under strong sunlight with high brightness, fresh picture quality, more environmental protection and energy saving;
Advantages of outdoor LCD digital signage
The sun can be read
1. Fresh HD LCD panel with high brightness, high definition and picture quality;
2. Anti-reflective glass with a reflectivity lower than 3% has a low reflectivity;
3. The internal system environment with low humidity and constant temperature enables the LCD panel to have the best performance;
4. Built-in automatic photosensitive probe, screen brightness can be automatically adjusted according to the ambient brightness, energy saving.
Multiple scenarios:
Supermarket, enterprise, residential property, traffic arteries, airport stations, public entertainment, gas stations, various venues, outdoor streets, community parks, etc.
| PANEL TYPE |
55” a-Si active matrix TFT-LCD |
| ACTIVE AREA |
680.4 x 1209.6 mm portrait for both sides |
| NATIVE RESOLUTION |
1080 x 1920 RGB, 4K model available |
| PIXEL PITCH |
0.21(H) x 0.63(V) mm |
| COLOR |
1.073 G, 10 bits depth |
| HORIZONTAL FREQ. |
121.8KHz ~ 140KHz |
| VERTICAL FREQ. |
95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS |
2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO |
1300:1, Dynamic contrast ratio: 6500:1 |
| DIMMING |
Auto-dimming by Light Sensor |
| VIEWING ANGLE |
89/89/89/89 |
| RESPONSE TIME |
4.5ms |
| INTERFACE |
VGA, HDMI x 3 |
| MEDIA PLAYER |
Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL |
Support for Full OSD Features |
| OPERATING VOLTAGE |
100 ~ 240VAC 60/50Hz |
| POWER CONSUMPTION |
900W at 2500 nits level for two sides w/o air-con |
| STANDBY MODE |
10 Watt or less |
| ACCESSORIES |
AC Power Cord, Remote Controller |
| |
HDMI, VGA cable x 1 |
| OPERATING |
Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) |
2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| |
3G module option |
|
DIMENSION
WEIGHT
|
2100(H) x 960(W) x 310(D) mm w/o Air-Con,
245 Kg approx.
|
| ENCLOSURE |
Iron sheet with outdoor powder painting |
| COOLING |
By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C,
Wide temp. -30-50C (option)
|
| |
Operating Humidity 10%-85% |
| |
Storage Temperature -30-60C |
| |
Storage Humidity 5%-90% |
| WARRANTY |
One year, limited for 2nd year |
Intelligent diurnal mode
The day is clear and the night is not dazzling
Day: Still clear in the sun
Night: the picture is automatically adjusted by optical fiber, soft and not dazzling
Extreme Temperature
1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -30°C to +60°C;
4. housing enclosure made of non-oxidizing material zinc coted steel.
